Clip-On Transit Time Ultrasonic Flow Meter TF1100-CC

Clip on type, No need to cut the pipe;

Designed for small diameter pipes;

Easy to install;

No moving parts and no process interrupted.

Clip on type, No need to cut the pipe;
Designed for small diameter pipes;
Easy to install;
No moving parts and no process interrupted.

Features

Clip on type, no need to cut the pipe

High accuracy of ± 2% value of reading

DN6-125 pipes are available

Measure forward and reverse direction flows

Can store yearly/monthly/daily data for 10 years

DN10-80 pipes are available

Wide flow velocity coverage from 0.1m/s to 5m/s

Optional for 4-20mA, RS485 Modbus and OCT(Pulse) outputs

Accuracy	+/-2.0%（+/-0.3m/s ~ 5.0m/s）
Flow velocity range	0.1m/s ~ 5.0m/s
Repeatability	0.80%
Pipe size	OD9.53, OD12.7, OD15, OD20, OD32, OD40, OD50, OD63, OD75, OD90, OD110, OD220
Response time	500ms
Analog output	0/4-20mA, Max. load: 600Ω
Alarm output	OCT output, upper and lower limit alarm function (optional)
Communication	RS485 (Modbus)
Data storage	Daily, Monthly and Annual flow totalizer
Power supply	24VDC@3W
Cable length	2m; Can extend up to 20m
Key panel	4-buttons
Display	1.3'' OLED 128*64 dot-matrix display screen
Unit	Support metric unit selection, Cubic Meters (m3), Liters(L), USA Gallons (GAL) / hour, / min, default unit is m3/h
Totalizer	6 bit flow rate totalizer
Pipe material	Carbon steel, stainless steel, PVC
Housing material	Aluminum alloy
Ambient temperature	-10℃ - 50℃
Fluid temperature	-10℃ - 50℃
Ambient humidity	RH 0~95%, no condensation
Fluid viscosity	<300CST（mm²/s）
Protection class	IP54
Weight	1.5kg
Medium	Water, seawater, oil, chemical liquid

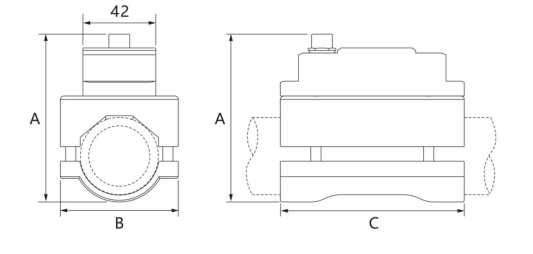

Dimension
