1. Core Advantages for Sludge Pipe Scenarios
Doppler ultrasonic flowmeters stand out in sludge pipe applications mainly due to three strengths. First, their non-intrusive clamp-on design means no components extend into the pipeline, avoiding clogging from sludge’s suspended solids (such as grit, organic flocs, or fiber) and reducing the need for frequent disassembly and cleaning. Second, they adapt well to sludge’s variable properties—unlike electromagnetic meters that fail with low-conductivity sludge, or turbine meters sensitive to turbulence, these flowmeters only require sufficient reflective particles in sludge to maintain accuracy, even for high-viscosity types. Third, their external transducers are made of corrosion-resistant materials (e.g., PTFE, ceramic), which can withstand acidic or alkaline industrial sludge, prolonging their service life to 8–10 years, far longer than intrusive meters.
2. Key Practical Application Fields
They are widely used in three major sludge-related fields. In municipal wastewater treatment plants, they monitor sludge flow across key stages: during thickening, they help optimize flocculant dosage by tracking raw sludge inflow; in digestion, they control anaerobic digester loading by measuring digested sludge flow (even with biogas bubbles); in dewatering, they adjust press parameters by monitoring sludge entering filter presses—for example, a Berlin plant improved measurement accuracy to ±2% and cut maintenance by 70% after adoption. For industrial sludge (e.g., fiber-rich pulp mill sludge or oily petrochemical sludge), they solve clogging issues that trouble traditional meters, ensuring continuous operation. They also support sludge reuse, such as in sludge-to-biogas projects, where they measure digested sludge flow to optimize the mixing ratio of sludge and other substrates, boosting biogas yield.
3. Essential Installation Guidelines

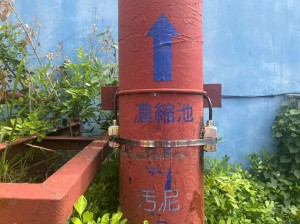

Proper installation is key to ensuring measurement accuracy, and three points must be noted. First, select a straight pipe section: the upstream length should be at least 10 times the pipe diameter, and the downstream length at least 5 times, to avoid flow disturbances from elbows, valves, or pumps that affect data reliability. Second, position transducers correctly: for horizontal pipelines, mount them 45°–90° above the pipe bottom—this avoids air pockets (which cause incorrect signal reflection) and sediment accumulation (which blocks signal transmission); for vertical pipelines, ensure sludge flows upward to keep particle distribution uniform. Third, use suitable coupling agents: choose high-temperature and oil-resistant types to ensure tight acoustic contact between transducers and the pipe wall, especially for pipelines transporting high-temperature sludge.
Summary
Doppler ultrasonic flowmeters are well-suited for sludge pipe applications, with core advantages of anti-clogging, strong adaptability, and corrosion resistance. They play a critical role in municipal wastewater treatment, industrial sludge management, and sludge reuse, while proper installation (focused on pipe section selection, transducer positioning, and coupling agent use) ensures their stable and accurate operation. These features make them a reliable solution for addressing the challenges of sludge flow measurement.
