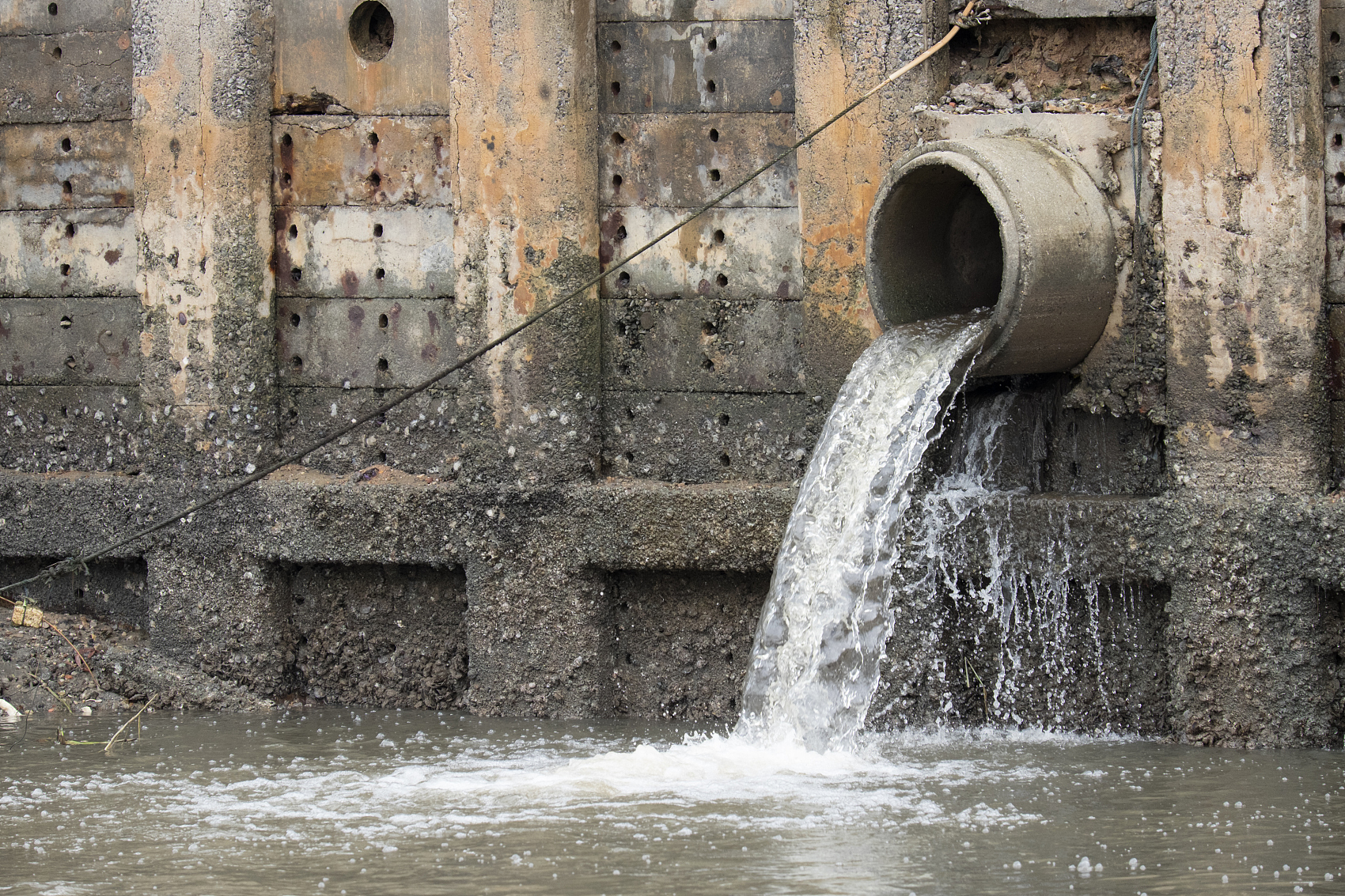

Accurate measurement of rainwater discharge from urban sewer systems is pivotal for flood control, drainage network optimization, and environmental compliance. Traditional full-pipe flow meters often fail to deliver reliable data in sewer scenarios, where pipes mostly operate in a non-full state and rainwater flow rates vary drastically—from trickles in light rain to surges in heavy storms. Open channel non-full pipe flow meters have emerged as the ideal solution to address these challenges.
Designed specifically for non-full flow conditions, these meters rely on the core principle of correlating water level, flow velocity, and cross-sectional flow area to calculate volumetric flow rate. The two most widely used types are ultrasonic and radar-based meters, both featuring non-contact sensing technology that eliminates direct contact with rainwater. This design is critical for sewer applications, as rainwater typically carries sediments, debris, and other contaminants that can foul or damage contact-type sensors.
Ultrasonic meters emit sound waves to measure the time taken for signals to bounce off the water surface, thus determining water level. They also leverage the Doppler effect to detect flow velocity by tracking the frequency shift of waves reflected off suspended particles in the water. Radar meters work similarly but use microwave signals, offering better performance in harsh weather like heavy rain or fog and complex pipe environments. By combining real-time level and velocity data, both meter types compute accurate flow rates continuously.
The advantages of open channel non-full pipe flow meters in sewer rainwater measurement are distinct and practical. First, their non-contact design minimizes maintenance needs and extends service life, as sensors avoid clogging or corrosion from sewer contaminants. Second, they excel at handling extreme flow fluctuations, accurately capturing both low flows during light rainfall and high-volume surges in storms—covering the full spectrum of rainwater discharge scenarios. Third, most models support many outputs,such as RS485/Modbus, Datalogger, 4-20mA and so on. Urban water management teams can track discharge dynamics instantly, issue timely flood warnings, and adjust drainage operations efficiently.
Installation is straightforward and cost-effective, requiring no major modifications to existing sewer infrastructure. Sensors are mounted on pipe tops, either internally or externally, based on pipe size and structure. A simple pre-installation site survey ensures optimal sensor placement to match pipe shape and flow characteristics.
In conclusion, open channel non-full pipe flow meters provide a reliable, low-maintenance solution for sewer rainwater discharge measurement. Their adaptability to non-full flow conditions and harsh sewer environments makes them indispensable for enhancing urban water management efficiency and resilience.
