In many industrial applications, selecting the right flow meter is crucial for ensuring efficiency and accuracy in monitoring and controlling fluid systems. Two popular types of flow meters—turbine flow meters and ultrasonic flow meters—each offer distinct benefits depending on the specific requirements of the process. Understanding how these two technologies compare can help industries choose the right solution for their needs.



• Turbine Flow Meters

Turbine flow meters measure the flow of fluid by detecting the rotation of a turbine placed inside the flow path. As fluid passes through the meter, it causes the turbine to spin, and the rate of rotation is directly proportional to the flow rate. Turbine flow meters are known for their high accuracy when measuring clean, steady flows of liquids with stable fluid properties.

These meters are particularly effective for measuring fluids like water or other clean, non-viscous liquids. However, turbine meters have some limitations. They rely on moving parts, which can wear over time, and may not perform well with fluids that have high viscosity, bubbles, or particulate matter. As a result, turbine meters are best suited for applications where fluid conditions are consistent and predictable.

• Ultrasonic Flow Meters

Ultrasonic flow meters operate differently from turbine meters. Rather than using moving parts, ultrasonic flow meters measure the time it takes for sound waves to travel through a fluid. There are two main types of ultrasonic flow meters: transit-time and Doppler.

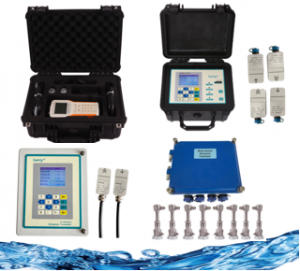

Transit-Time Ultrasonic Flow Meters: These meters measure the difference in the time taken by sound waves traveling upstream and downstream through the fluid. They are ideal for clean, homogeneous liquids like water and offer high accuracy and precision. These meters are widely used in applications such as water treatment and industrial processes where clean liquids flow through pipes.

Doppler Ultrasonic Flow Meters: These meters are designed for measuring fluids that contain suspended solids, bubbles, or particulate matter. Doppler ultrasonic meters reflect sound waves off particles or bubbles in the fluid, allowing them to measure the flow in more challenging conditions. They are ideal for applications like wastewater treatment and slurry measurement.



Key Differences Between Turbine and Ultrasonic Flow Meters

• Fluid Compatibility:Turbine flow meters perform well with clean, stable liquids but can struggle with fluids containing high viscosity, solids, or bubbles.
• Ultrasonic flow meters offer more versatility, with Doppler models suitable for fluids with suspended solids or bubbles, while transit-time meters excel with clean, homogeneous liquids.

Accuracy:

• Turbine flow meters are accurate for clean, steady flows and offer good precision in ideal conditions.
• Ultrasonic flow meters provide high accuracy as well, especially in clean liquids (transit-time) and complex fluids (Doppler).

Maintenance:

• Turbine flow meters involve mechanical components and may require more frequent maintenance due to wear and tear on the moving parts.
• Ultrasonic flow meters have no moving parts, leading to lower maintenance requirements and longer service life.

Installation Flexibility:

• Turbine flow meters often require precise installation and are better suited for specific pipe sizes and flow rates.
• Ultrasonic flow meters, particularly transit-time meters, offer more flexible installation options and can be used in both inline and clamp-on configurations. Doppler meters provide similar flexibility but are particularly useful for more challenging installations.
