Comparison Between Electromagnetic Flow Meters and Ultrasonic Flow Meters

2. Types of Fluids Measured

• EMF:

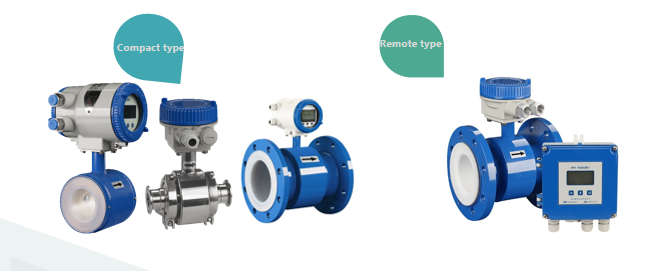

  Electromagnetic flow meters are suitable for measuring conductive fluids, such as water, sewage, chemicals, and slurry. They cannot measure non-conductive fluids like oils and gases.

• USM:

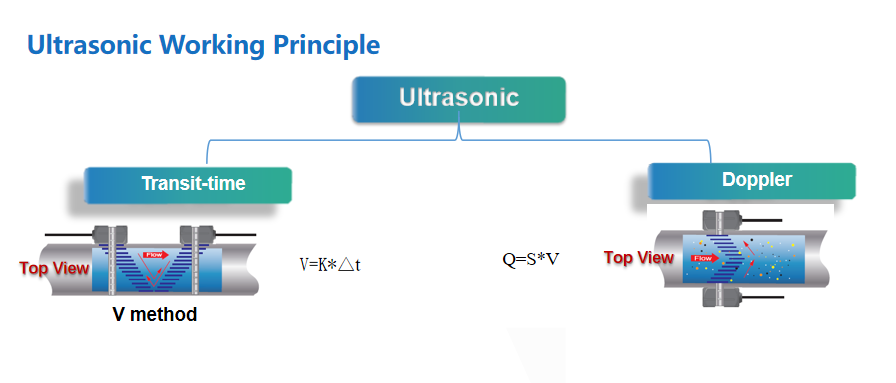

  Ultrasonic flow meters can measure both conductive and non-conductive fluids. They are versatile and can handle liquids with suspended particles, bubbles, or even gases in certain applications.

3. Accuracy

• EMF:
  Electromagnetic flow meters are highly accurate, with typical accuracy levels between ±0.5% to ±1% of the reading. They provide continuous, real-time measurements, making them suitable for applications where precise flow data is required.

• USM:
  The accuracy of ultrasonic flow meters can vary depending on the type and the application. For clean fluids, accuracy is typically between ±1% and ±2%, but for liquids with suspended solids or gas bubbles, accuracy may degrade. Doppler ultrasonic meters, in particular, may have lower accuracy due to signal interference from particles or bubbles.

4. Installation and Maintenance

• EMF:
  Electromagnetic flow meters generally require a straight pipe section for accurate measurements, which may limit installation flexibility. However, once installed, they are low maintenance because they have no moving parts. The most common maintenance issues involve electrode wear or fouling in certain applications, such as slurries.

• USM:
  Ultrasonic flow meters can be installed externally to the pipe, making them a non-invasive option. This is particularly useful for pipes that are difficult to access. The installation is relatively simple, but it may require regular calibration to maintain accuracy. Ultrasonic meters also have no moving parts, which reduces the need for physical maintenance. However, they can be affected by changes in fluid temperature or composition.

5. Cost

• EMF:
  Electromagnetic flow meters are typically more expensive than ultrasonic flow meters, especially when measuring high-accuracy or specialized applications. The cost can vary depending on factors like pipe size and material.

• USM:
  Ultrasonic flow meters are generally less expensive than electromagnetic meters, especially in the case of clamp-on models. They offer a more cost-effective solution for non-invasive measurements or temporary flow monitoring.

6. Flow Profile and Pipe Size

• EMF:
  Electromagnetic flow meters are relatively unaffected by changes in flow profile, provided the fluid is conductive. However, they require a certain pipe diameter to function optimally. Too small or too large a pipe may lead to inaccuracies.

• USM:
  Ultrasonic flow meters are sensitive to flow profile, and accuracy can be impacted by turbulent or inconsistent flow. Flow conditioning, such as the use of flow straighteners, is often needed to ensure accurate readings. They are available in various sizes and are flexible in terms of installation.

7. Applications

• EMF:
  Ideal for applications involving large volumes of conductive liquids such as wastewater treatment, chemical processing, water distribution systems, and slurry measurement.

• USM:
  Suitable for both conductive and non-conductive fluids, including oil, gas, water, and chemicals. They are particularly useful for industries where non-invasive measurement is required, such as in HVAC systems, natural gas pipelines, and oil transportation.

8. Advantages and Disadvantages

• EMF Advantages:

  • High accuracy for conductive fluids.
  • No moving parts, low maintenance.
  • Suitable for a wide range of industrial applications.

• EMF Disadvantages:

  • Limited to conductive fluids.
  • Installation requires a straight section of pipe.
  • Higher cost compared to ultrasonic meters.

• USM Advantages:

  • Non-invasive, making installation easier.
  • Suitable for both conductive and non-conductive fluids.
  • Flexible installation, including clamp-on models.

• USM Disadvantages:

  • Accuracy can be affected by fluid conditions, such as turbulence or the presence of solids.
  • Higher installation costs for certain models (e.g., transit-time ultrasonic meters).
  • Requires periodic calibration, especially in challenging applications.

Conclusion

Both electromagnetic flow meters and ultrasonic flow meters have their unique advantages, and the choice between the two depends on the specific requirements of the application. EMF is ideal for precise measurements of conductive fluids, especially in industries like water treatment and chemicals. In contrast, ultrasonic meters offer versatility, especially in non-invasive flow measurement applications, and can handle a wider variety of fluids, including both conductive and non-conductive ones.

For industries requiring high accuracy in measuring conductive liquids and where the cost is justified, electromagnetic flow meters are a strong choice. For less-invasive, flexible solutions across various fluid types and sizes, ultrasonic flow meters provide an excellent alternative. Understanding the characteristics of the fluid and the operational environment is key to selecting the right flow meter technology.
