Ultrasonic flowmeters have become an integral part of fluid flow measurement across various industries, with multi - channel and single - channel versions each having unique features. Understanding the differences between these two types is crucial for selecting the most suitable flowmeter for specific applications.
1. Measurement Principle and Structure
Single - Channel Ultrasonic Flowmeters
Single - channel ultrasonic flowmeters operate with a relatively simple structure. They typically have one pair of ultrasonic transducers. These transducers transmit and receive ultrasonic signals along a single path through the fluid. This straightforward design makes them cost - effective, but it also means that they rely on the assumption that the flow velocity profile within the measuring section is uniform. If the flow is non - uniform, the measurement accuracy may be compromised.
Multi - Channel Ultrasonic Flowmeters
Multi - channel ultrasonic flowmeters, on the other hand, are equipped with multiple pairs of transducers. These transducers are arranged to create multiple measurement paths within the fluid. By taking measurements from different points across the cross - section of the pipe, multi - channel flowmeters can better capture the actual flow velocity distribution. This complex structure enables them to achieve more accurate measurements, even in situations where the flow profile is highly non - uniform.
2. Measurement Accuracy
Single - Channel Ultrasonic Flowmeters
Single - channel flowmeters generally offer acceptable accuracy in applications where the flow is relatively stable and the velocity profile is nearly uniform, such as in some clean - liquid pipelines with laminar flow. However, in real - world industrial scenarios, the flow often experiences disturbances due to fittings, valves, or changes in the pipe diameter. In such cases, the single - measurement path of the single - channel flowmeter may not accurately represent the average flow velocity, leading to measurement errors.
Multi - Channel Ultrasonic Flowmeters
Multi - channel flowmeters excel in terms of accuracy. Their ability to measure flow at multiple points allows them to calculate a more accurate average flow velocity. For example, in large - diameter pipes or in applications where the fluid contains solids or where the flow is highly turbulent, multi - channel flowmeters can significantly reduce measurement errors. They can adapt to a wider range of flow conditions and provide more reliable data for process control and billing purposes.

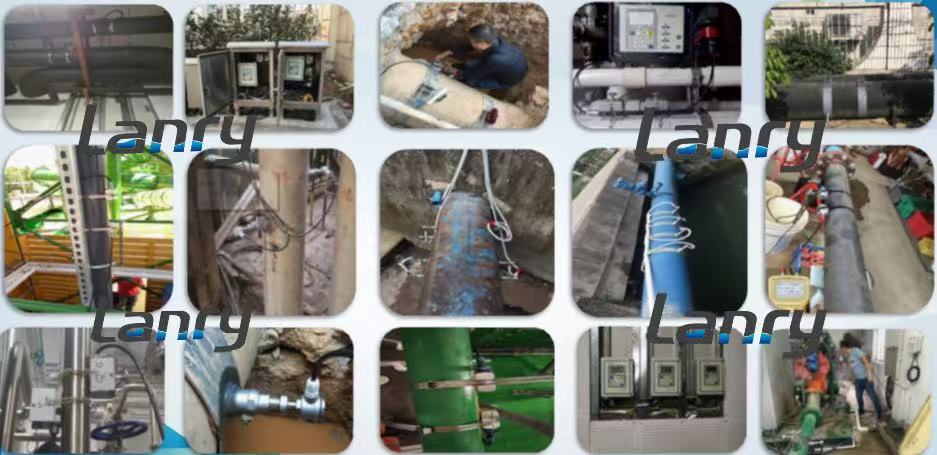

3. Installation and Maintenance
Single - Channel Ultrasonic Flowmeters
Single - channel flowmeters are relatively easy to install. Their simple structure requires less space and fewer connections, reducing installation time and complexity. Maintenance is also straightforward, as there are fewer components to check and calibrate. This makes them a popular choice for applications where cost - effectiveness and ease of installation are prioritized.
Multi - Channel Ultrasonic Flowmeters
The installation of multi - channel flowmeters is more complex. The multiple transducers need to be precisely positioned to ensure accurate measurement. This may require more space and careful alignment. Maintenance also involves more components, including multiple transducers and associated electronics. Calibration of multi - channel flowmeters is more elaborate, as each measurement channel may need to be calibrated individually.
4. Cost
Single - Channel Ultrasonic Flowmeters
Single - channel flowmeters are generally more cost - effective, both in terms of the initial purchase price and long - term maintenance costs. Their simple design and fewer components contribute to the lower cost, making them suitable for applications with budget constraints.
Multi - Channel Ultrasonic Flowmeters
Multi - channel flowmeters are more expensive due to their complex design, multiple transducers, and advanced signal processing capabilities. However, in applications where high accuracy is crucial, the additional cost may be justified by the improved measurement performance and the resulting benefits in terms of process optimization and reduced operational losses.
In conclusion, both single - channel and multi - channel ultrasonic flowmeters have their own advantages and limitations. The choice between them depends on factors such as the specific application requirements, flow conditions, budget, and accuracy needs.
