Factors Affecting the Measurement Accuracy of Clamp-On Ultrasonic Flow Meters

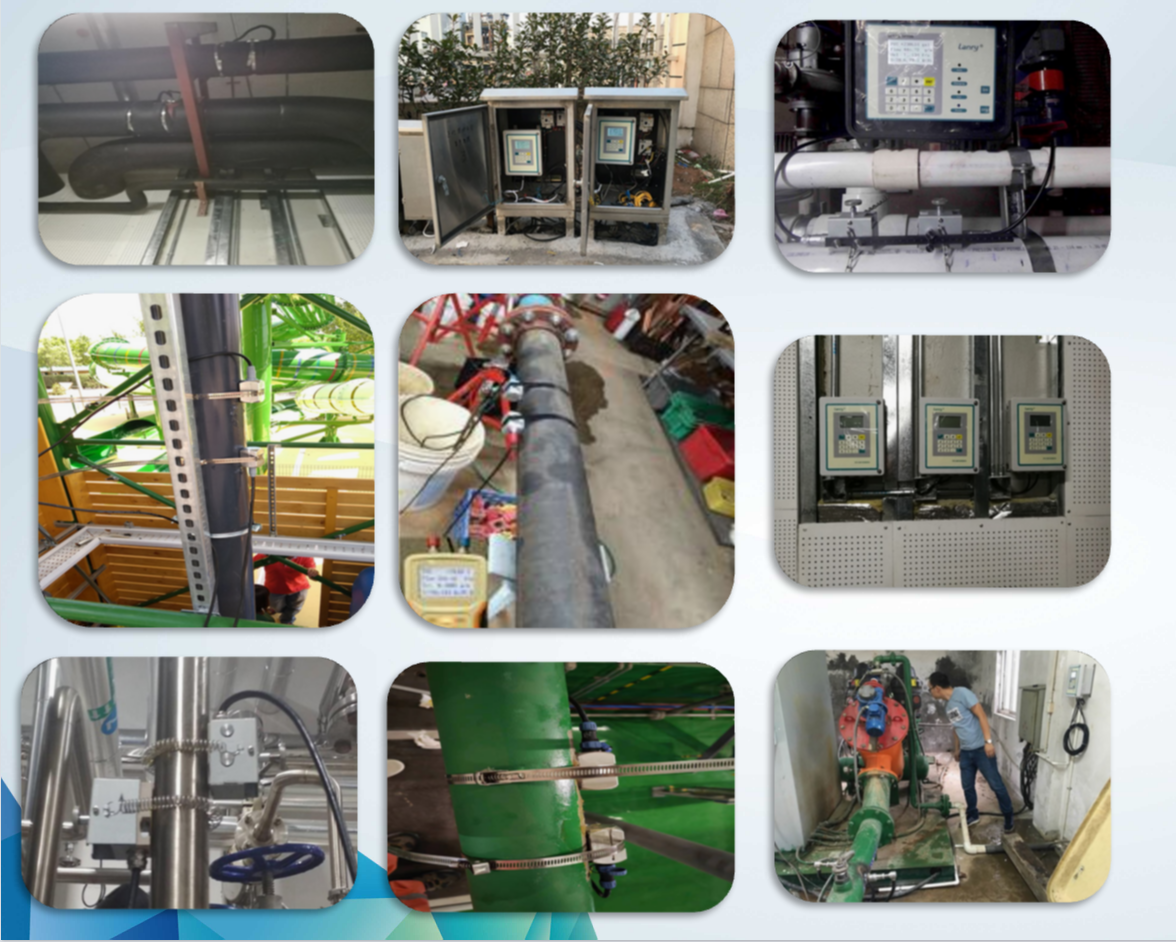

Clamp-on ultrasonic flow meters are widely used for non-invasive flow measurement, offering the advantages of easy installation and minimal maintenance. However, several factors related to the pipeline condition, environmental disturbances, and fluid properties can affect measurement accuracy. Below are the key factors that may lead to poor measurement performance:

1. Pipe Condition

• Pipe Aging and Deposits: If the inner walls of the pipeline have significant scaling, rust, or accumulated sediments, the ultrasonic signals may weaken or scatter, reducing measurement accuracy.
• Pipe Material: Some pipeline materials, especially those with composite structures, have poor acoustic conductivity, making it difficult for ultrasonic signals to pass through effectively.
• Pipe Coatings: Certain coatings or insulation layers on the pipeline may block or distort ultrasonic signals, affecting measurement reliability.

2. Flow Conditions

• Partially Filled Pipes: Clamp-on ultrasonic flow meters assume the pipe is fully filled with liquid. If the pipe is not completely filled, measurement errors or failures may occur.
• Air Bubbles and Particulates: A high concentration of air bubbles or solid particles in the liquid can scatter the ultrasonic waves, leading to signal instability.
• Insufficient Straight Pipe Length: Turbulence caused by valves, elbows, or pumps can interfere with accurate flow measurement. A sufficient straight pipe length before and after the measurement point helps ensure stable readings.
• Unfavorable Installation Location: If the flow meter is installed too close to upstream valves, butterfly valves, or other flow-disturbing components, it may cause erratic measurements.

3. Environmental Interference

• Electromagnetic Interference: High-frequency signals from surrounding electronic devices can affect the ultrasonic signal transmission, leading to data fluctuations.
• Noise Interference: Strong background noise, such as mechanical vibrations or external sound waves, may interfere with signal detection.

4. Fluid Characteristics

• Flow Direction and Pipe Gradient: If the liquid flows from top to bottom or if the meter is installed at a high point in the pipeline, air pockets may accumulate, leading to inaccurate readings.
• Poor Acoustic Conductivity: Fluids with low acoustic transmission properties, such as wastewater or sludge, can weaken ultrasonic signals, making flow measurement less reliable.

Conclusion

To achieve accurate flow measurement with clamp-on ultrasonic flow meters, it is essential to ensure proper pipe conditions, maintain a fully filled pipeline, reduce turbulence, minimize environmental interference, and consider fluid properties. By optimizing installation locations and addressing potential issues, users can significantly improve measurement accuracy and reliability.
