When using an ultrasonic flowmeter, electromagnetic interference from frequency converters can affect measurement accuracy. Frequency converters generate high-frequency electromagnetic waves during operation, which may interfere with the propagation of ultrasonic signals, causing data instability or measurement errors.
Here are some effective ways to reduce frequency converter interference:
-
Stay Away from the Frequency Converter Whenever possible, choose a measurement location for the pipeline that is far from frequency converter equipment. This helps to minimize the impact of strong electromagnetic fields on the sensor and signal transmission.
-
-
Optimize Power Supply In environments with frequency converter interference, it's advisable to use battery-powered or 24VDC power supply to reduce interference from AC power sources. If AC power must be used, ensure proper grounding and consider using isolated or regulated power supplies.
-
Improve Grounding and Shielding Ensure that the flowmeter is properly grounded to effectively reduce electromagnetic interference. Use shielded signal cables, and make sure the shielding is properly grounded to minimize external electromagnetic disturbances.
-
Adjust Sensor Installation Location During sensor installation, keep it away from high-voltage cables, frequency converters, motors, and other sources of interference. Avoid sharing cable conduits with these devices.
By following these strategies, you can significantly reduce the impact of frequency converter interference on ultrasonic flowmeter performance, ensuring more stable and accurate measurements. If interference persists, additional solutions such as using filters or adjusting installation methods can further optimize testing results.
At Lanry Instruments, we offer a range of ultrasonic flow meters to suit different applications. These include:

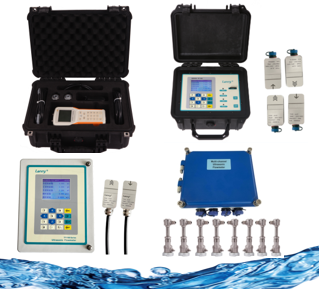

- Transit-time Ultrasonic Flow Meters, which come in both Inline and Clamp-on types. The Clamp-on models include variants such as Wall-mounted, Portable, Handheld, Dual-channel, and Multi-channel.

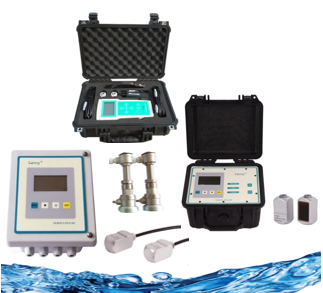

- Doppler Ultrasonic Flow Meters, ideal for measuring flow in challenging conditions, where the transit-time method may not be suitable.
Our solutions are designed to offer high precision, flexibility, and ease of installation.
