Introduction

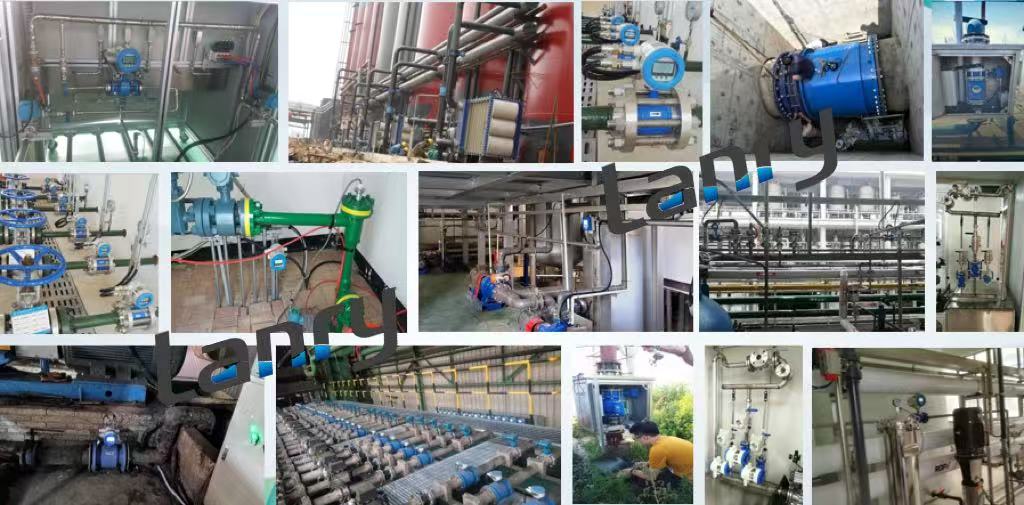

Electromagnetic flow meters are essential instruments for measuring the flow of conductive fluids in numerous industrial applications. The lining of an electromagnetic flow meter serves multiple critical functions. It acts as a barrier between the electrodes and the fluid, protecting the electrodes from corrosion and ensuring accurate measurement. Additionally, it safeguards the inner wall of the flow meter body from the potentially erosive or corrosive effects of the fluid. Different lining types are designed to meet the diverse requirements of various fluids and operating conditions.
Common Lining Materials
1. Rubber Linings
- Natural Rubber
- Natural rubber is a cost - effective lining option. It has good flexibility, which allows it to withstand some mechanical stress during installation and operation. It is suitable for measuring fluids with relatively low temperatures, typically up to around 60 - 80°C. Natural rubber is also resistant to many common aqueous solutions, making it a popular choice for applications in the water and wastewater treatment industries. For example, in a municipal wastewater treatment plant, natural rubber - lined electromagnetic flow meters can be used to measure the flow of raw sewage, where the fluid may contain some suspended solids and a variety of chemical substances at moderate temperatures.
- Neoprene Rubber
- Neoprene rubber offers enhanced chemical resistance compared to natural rubber. It can resist the action of oils, fuels, and many chemicals. Neoprene - lined electromagnetic flow meters are often used in industrial applications where the fluid may come into contact with such substances. For instance, in the automotive manufacturing industry, when measuring the flow of coolant fluids that may contain anti - freeze agents and other additives, neoprene lining provides reliable protection. The temperature range for neoprene - lined meters is typically slightly higher than that of natural rubber, up to around 80 - 100°C.
- Butyl Rubber
- Butyl rubber has excellent impermeability to gases and water vapor. It is highly resistant to chemical attack, especially from acids and alkalis. This makes it suitable for applications where the fluid is highly corrosive. In the chemical industry, when measuring the flow of strong acid or alkali solutions, butyl rubber - lined electromagnetic flow meters are a preferred choice. They can operate at temperatures ranging from - 40°C to 120°C, providing a wide operating temperature window for different industrial processes.
2. Plastic Linings
- Polyvinyl Chloride (PVC)
- PVC is a widely used plastic lining material. It is relatively inexpensive and offers good chemical resistance to many common chemicals. PVC - lined electromagnetic flow meters are suitable for applications in the food and beverage industry, as PVC is non - toxic and compliant with relevant hygiene standards. For example, in a fruit juice production plant, PVC - lined flow meters can be used to measure the flow of juice during the production process. However, PVC has a relatively limited temperature range, usually up to around 60 - 70°C.
- Polyethylene (PE)
- PE, especially high - density polyethylene (HDPE), is known for its toughness and chemical resistance. HDPE - lined electromagnetic flow meters are often used in applications where the fluid may contain abrasive particles. In the mining industry, when measuring the flow of slurry (a mixture of water and solid particles), HDPE lining can withstand the abrasion caused by the solid particles. PE - lined meters can operate at temperatures up to around 80 - 90°C, depending on the specific grade of polyethylene.
- Polytetrafluoroethylene (PTFE)
- PTFE is a high - performance plastic with outstanding chemical resistance. It can resist almost all chemicals, including strong acids, alkalis, and organic solvents. PTFE - lined electromagnetic flow meters are used in extremely corrosive environments, such as in the pharmaceutical industry when measuring highly reactive chemical solutions. PTFE also has a very low coefficient of friction, which helps to reduce the adhesion of the fluid to the lining, ensuring accurate flow measurement. The temperature range for PTFE - lined meters is quite wide, from - 200°C to 260°C, making it suitable for a variety of temperature - sensitive applications.
3. Ceramic Linings
- Alumina Ceramics
- Alumina ceramics are extremely hard and wear - resistant. They are ideal for applications where the fluid contains highly abrasive particles. In the cement industry, for example, when measuring the flow of cement slurry, which contains abrasive cement particles, alumina ceramic - lined electromagnetic flow meters can provide long - term reliable service. Alumina ceramics also have good chemical resistance, especially to acids and alkalis at high temperatures. They can withstand temperatures up to around 1000°C, making them suitable for high - temperature industrial processes.
- Zirconia Ceramics
- Zirconia ceramics offer excellent mechanical properties and chemical stability. They are more resistant to thermal shock compared to some other ceramic materials. Zirconia - lined electromagnetic flow meters are used in applications where the fluid may have rapid temperature changes. In the glass manufacturing industry, when measuring the flow of molten glass - related fluids, zirconia ceramic lining can handle the high - temperature and chemically aggressive environment, as well as the potential thermal stress during the process.
Selection Considerations
When choosing a lining type for an electromagnetic flow meter, several factors need to be considered. The nature of the fluid, including its chemical composition, temperature, pressure, and the presence of abrasive particles, is crucial. For highly corrosive fluids, materials like PTFE or certain ceramics may be required. In applications with abrasive fluids, wear - resistant linings such as rubber (for less abrasive cases) or ceramics are preferred. Temperature and pressure limitations of the lining material must also match the operating conditions of the flow meter. Additionally, cost - effectiveness and compatibility with the overall system, including the electrodes and the meter body, should be taken into account.
In conclusion, the selection of the appropriate lining type for an electromagnetic flow meter is a critical decision that directly impacts the performance, durability, and accuracy of the flow measurement in different industrial applications. By carefully considering the characteristics of the fluid and the operating conditions, the most suitable lining material can be chosen to ensure reliable and efficient operation of the electromagnetic flow meter.
