1. Introduction
In modern industrial processes, accurately and reliably measuring the flow of fluids containing impurities, bubbles, or suspended solids has always been a challenge. As a professional Wastewater Flow Meter, the DF6100-EC Clamp-On Doppler Ultrasonic Flow Meter produced by Lanry Instruments is specifically designed to tackle such complex working conditions. Centered on Non-invasive Flow Measurement technology, it utilizes the well-established Doppler physical principle, offering an ideal solution that is non-invasive, easy to install, and low in maintenance costs—making it a standout Flow Meter for Dirty Liquids.
2. Core Measurement Principle

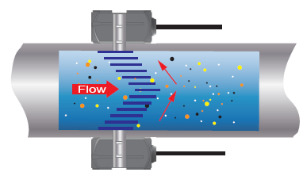

As a typical Wastewater Doppler Flow Meter, the DF6100-EC Non-invasive Flow Measurement operates on the Doppler Effect principle. It features two main components: a transmitting transducer that emits ultrasonic waves into the liquid, and a receiving transducer that captures reflections from suspended particles or bubbles larger than 100 microns. When these particles move with the fluid, the reflected waves undergo a frequency shift proportional to the flow velocity. The instrument's processor analyzes this Doppler shift to calculate flow rate based on pipe parameters.
This operating principle further consolidates its advantage as a Flow Meter for Dirty Liquids, making the meter ideal for dirty or aerated liquids, but unsuitable for clean fluids like tap water that lack sufficient reflectors. Clean fluids are suitable for Transit-Time Ultrasonic Flowmeters.
3. Wide Range of Applications
Thanks to its unique working principle, the DF6100-EC excels in many applications where traditional flow meters struggle, including:
Water and Wastewater Treatment: It is the preferred solution for measuring raw sewage, return activated sludge, waste activated sludge, and internal plant drainage flows, fully demonstrating its value as a specialized Flow Meter for Dirty Liquids.
Industrial Processes: Suitable for measuring pulp, ore slurry, chemical slurries mixed liquids.
Circulation Systems: As a flexible Clamp on Doppler Flow Meter, it provides reliable flow monitoring in recirculating water and cooling water systems in industries such as mining and metallurgy, even when the water contains significant impurities.
Other Fields: Also applicable for measuring groundwater extraction, animal processing wastewater, and other fluids containing solid components, further expanding the application scope of Non-invasive Flow Measurement technology.
4. Installation and Performance Advantages
The DF6100-EC's core advantage lies in its Pipe clamp flow meter installation method. It employs an external clamp-on installation, requiring no pipe cutting or process interruption, significantly reducing installation costs and risks—this is the most intuitive manifestation of Non-invasive Flow Measurement. The sensors are directly clamped onto the outer wall of the pipe, with specialized acoustic couplants ensuring effective transmission of ultrasonic signals.
To achieve optimal measurement accuracy, it is recommended to maintain sufficient straight pipe sections upstream and downstream of the sensor installation point to ensure the fluid forms a stable and symmetrical velocity profile. As a high-performance Clamp on Doppler Flow Meter, it offers a wide flow velocity range of 0.05–12 m/s, capable of capturing various flow states from sluggish to turbulent. The sensors can reach IP68, ensuring stable operation in harsh industrial environments characterized by humidity and dust—providing long-term reliable service for wastewater and dirty liquid measurement scenarios.
5. In summary
The DF6100-EC Doppler Ultrasonic Flow Meter, as a professional Wastewater Flow Meter, ingeniously applies physical principles and Non-invasive Flow Measurement technology to transform complex fluid measurement into precise electrical signals. Whether as a Flow Meter for Dirty Liquids or a flexible Portable Doppler Flow Meter, it provides a powerful, economical, and reliable flow monitoring tool for various industries dealing with complex fluids, with its convenient Pipe clamp flow meter installation further enhancing its practical value in industrial sites.
