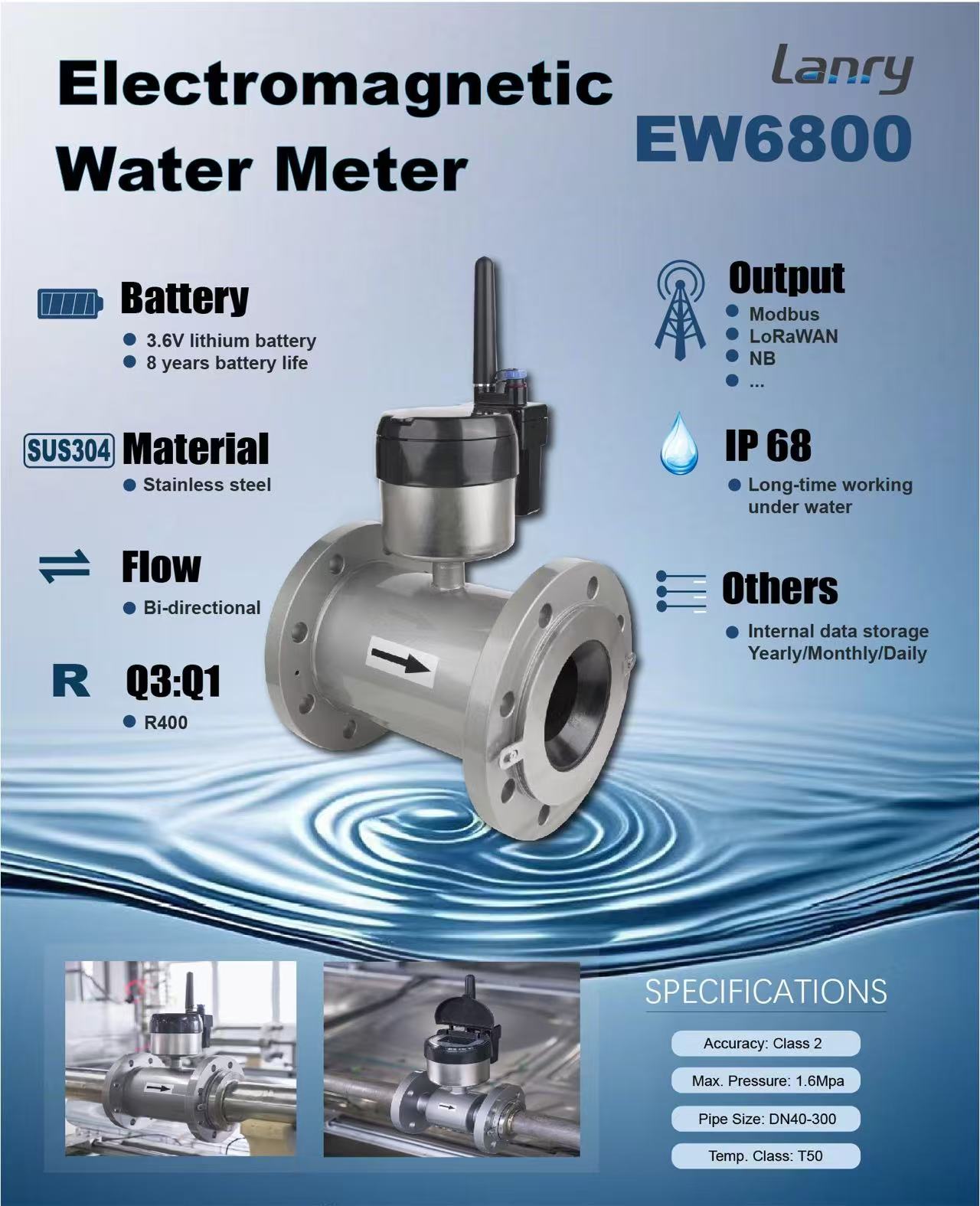

The Principle and Applications of Electromagnetic Water Meters

Electromagnetic water meters are advanced devices used for measuring the flow rate of water and other conductive liquids. These meters operate based on the principles of electromagnetic induction and offer highly accurate, reliable, and maintenance-free measurements. They are widely used in various sectors, such as water supply systems, wastewater treatment, and industrial applications. This article will explore the working principle of electromagnetic water meters and their diverse applications.

1. The Principle of Electromagnetic Water Meters

Electromagnetic water meters operate based on Faraday’s law of electromagnetic induction, which states that when a conductive liquid flows through a magnetic field, an electric voltage is induced that is proportional to the velocity of the fluid. This induced voltage is then measured by electrodes inside the meter, and the flow rate is calculated.

Here’s how the measurement process works:

• A magnetic field is generated by coils placed around the flow tube.
• As conductive liquid (such as water) flows through the pipe, the moving liquid cuts through the magnetic field.
• This results in an induced voltage in the liquid. The amount of voltage depends on the flow velocity of the liquid.
• The voltage is captured by electrodes placed in the pipe. These electrodes measure the voltage difference and send it to the meter’s control unit.
• The control unit processes this signal, computes the flow rate, and displays the result.

Since the measurement is based on electromagnetic principles, no moving parts are involved in the process. This makes electromagnetic water meters highly durable and capable of providing accurate readings even in harsh conditions.

2. Advantages of Electromagnetic Water Meters

Electromagnetic water meters offer several advantages over traditional mechanical meters:

• No Moving Parts: Unlike mechanical meters, electromagnetic water meters do not have moving components, which reduces wear and tear and extends their lifespan.
• High Accuracy: Electromagnetic meters provide highly accurate flow measurements, even under challenging conditions such as fluctuating flow rates, varying pressures, or high viscosity liquids.
• Wide Flow Range: These meters can accurately measure a wide range of flow rates, from very low to very high, making them versatile for different applications.
• Minimal Maintenance: With no moving parts and fewer potential points of failure, electromagnetic meters require minimal maintenance compared to mechanical or turbine-based flow meters.
• Durability: These meters are resistant to wear, corrosion, and clogging, which is especially important when measuring liquids with suspended solids or harsh chemicals.
• Versatility: They can measure a variety of liquids, including clean water, wastewater, and liquids with suspended particles, making them suitable for numerous applications.

3. Applications of Electromagnetic Water Meters

Electromagnetic water meters are used in many industries, thanks to their accuracy, reliability, and adaptability to different types of liquids. Some key applications include:

1. Municipal Water Supply Systems

Electromagnetic water meters are widely used in municipal water supply systems to monitor the flow of clean water from treatment plants to residential, commercial, and industrial areas. These meters help utility companies accurately measure water usage, detect leaks, and ensure fair billing for customers. Their ability to handle varying flow rates and pressures makes them ideal for large-scale water distribution systems.

2. Wastewater Treatment

In wastewater treatment plants, electromagnetic water meters measure the flow of influent (incoming wastewater) and effluent (treated water). These meters can handle water that contains suspended solids or other contaminants, making them an ideal choice for monitoring the flow of wastewater. Accurate flow measurement is crucial for optimizing treatment processes and ensuring that environmental regulations are met.

3. Agricultural Irrigation

In agricultural applications, electromagnetic water meters are used to monitor the flow of water in irrigation systems. These meters allow farmers to track water usage accurately, ensuring that crops receive the right amount of water for optimal growth. By providing real-time data on water flow, these meters help improve water conservation and ensure efficient irrigation, especially in regions with water scarcity.

4. Industrial Water Usage

Industries that require water for processing, cooling, or cleaning rely on electromagnetic water meters for accurate flow measurement. These include industries like food and beverage production, chemical manufacturing, and power generation. In these sectors, electromagnetic meters help monitor water usage, optimize cooling systems, and ensure compliance with water-related regulations. Their ability to measure high-flow and high-pressure conditions makes them suitable for demanding industrial environments.

5. Cooling Systems

In industrial cooling systems, such as those used in power plants, HVAC systems, and large manufacturing facilities, electromagnetic water meters are employed to monitor the flow of cooling water. These systems require precise flow control to maintain optimal temperatures and prevent overheating of equipment. Electromagnetic meters can handle the high pressures and varying flow rates typically found in such cooling systems.

6. Smart Metering and District Metering Areas (DMAs)

Electromagnetic water meters are increasingly being integrated into smart metering systems and district metering areas (DMAs). These systems allow for real-time monitoring of water consumption and enable utilities to detect leaks, monitor pressure levels, and optimize the performance of water distribution networks. The integration of electromagnetic meters into IoT networks also facilitates remote monitoring and data analysis, improving operational efficiency.

7. Desalination Plants

In desalination plants, electromagnetic water meters are used to monitor the flow of seawater and the output of freshwater. These meters provide accurate measurements to ensure the proper functioning of desalination processes, which are critical for producing drinking water in areas with limited freshwater resources.

4. Challenges and Considerations

While electromagnetic water meters offer many benefits, there are some challenges and considerations when using them:

• Conductivity Requirement: Electromagnetic meters require the liquid being measured to be conductive (e.g., water). They cannot be used for non-conductive fluids such as oils or gases without modifications.
• Cost: Electromagnetic meters tend to be more expensive than mechanical meters, although their accuracy and long lifespan can offset the initial cost over time.
• Installation: Although electromagnetic meters do not require moving parts, proper installation is critical for accurate measurements. Factors such as pipe size, material, and flow conditions must be carefully considered.

5. Conclusion

Electromagnetic water meters are powerful tools for accurately measuring water and other conductive liquids across various industries. Their ability to measure a wide range of flow rates, handle challenging fluids, and operate with minimal maintenance makes them indispensable for municipal water supply systems, wastewater treatment plants, irrigation systems, and industrial applications.

As the demand for water efficiency and smart infrastructure continues to grow, electromagnetic water meters will play an increasingly important role in managing water resources. Their integration with smart metering systems and IoT technologies will further enhance their capabilities, enabling better monitoring, control, and conservation of water in both urban and rural settings.
