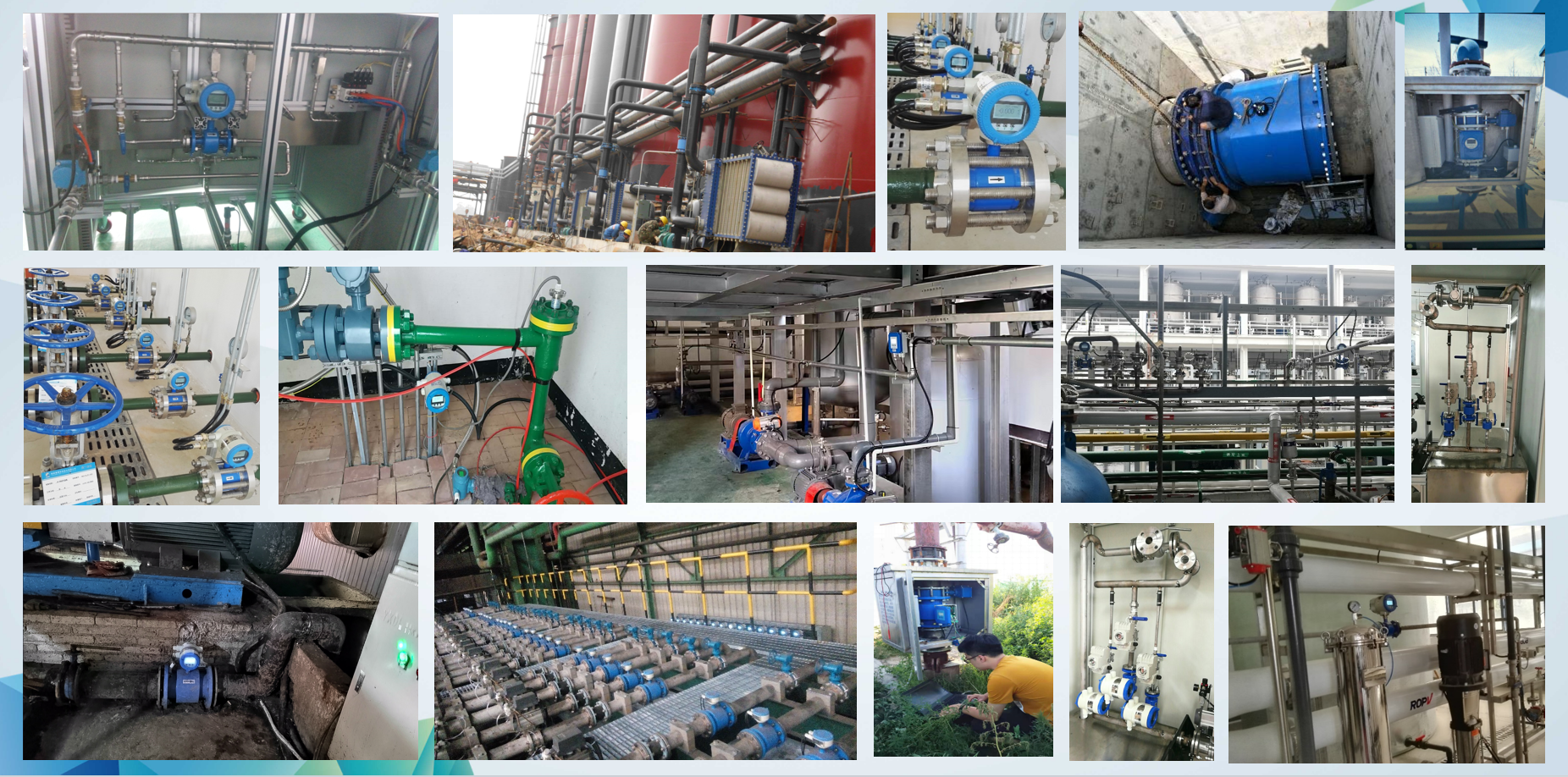

Electromagnetic flow meters (also known as mag meters) are widely used in various industries to measure the flow of conductive liquids. These flow meters operate based on Faraday’s Law of electromagnetic induction, which requires no moving parts, providing high accuracy and reliability in fluid flow measurement. One critical component of the electromagnetic flow meter is the lining material, which serves to protect the inner surface of the meter while ensuring the proper functioning of the device. The choice of lining material directly impacts the performance, durability, and suitability of the flow meter for different applications. In this article, we’ll explore the various lining materials used in electromagnetic flow meters and how they affect the meter's operation.
What Are Lining Materials in Electromagnetic Flow Meters?
Lining materials are used to coat the inner surface of the flow meter tube to protect the meter from aggressive chemicals, abrasion, and extreme temperatures. The right lining material ensures accurate measurements while prolonging the life of the meter by preventing damage from corrosive fluids or harsh operating conditions.
Key Factors for Selecting Lining Materials
When selecting a lining material for an electromagnetic flow meter, several factors need to be considered:
- Chemical Resistance: The material must be resistant to the fluids being measured, especially in environments with aggressive chemicals or acids.
- Abrasion Resistance: If the fluid contains solid particles or slurries, a material with high abrasion resistance is necessary.
- Temperature Resistance: The lining material must withstand the operating temperatures of the application.
- Fluid Compatibility: The lining should be compatible with the type of fluid being measured, whether it is highly corrosive, abrasive, or high-pressure.
Common Lining Materials for Electromagnetic Flow Meters
| Lining Material | Properties | Applications | Advantages | Limitations |
| PTFE (Teflon) | Excellent chemical resistance to acids, alkalis, organic solvents. Smooth, non-stick surface. | Chemical processing, food & beverage, pharmaceuticals. | High chemical resistance, non-stick surface. | Low abrasion resistance, wear in abrasive environments. |
| Neoprene (Ne) | Flexible, resistant to oils, fuels, and moderate chemicals. | Oil & gas, automotive, general industrial applications. | Flexible, resistant to oils and fuels. | Limited chemical resistance compared to specialized materials. |
| Glass-Fiber Reinforced Neoprene (GFNE) | Enhanced mechanical strength, heat, and chemical resistance. | Water treatment, petroleum industries, general industrial applications. | Improved mechanical strength, better chemical resistance. | Not as durable in highly aggressive chemical environments. |
| Polyurethane (PU) | Highly durable, excellent abrasion resistance, good resistance to oils and organic solvents. | Mining, wastewater treatment, slurry applications. | Excellent abrasion resistance, good for abrasive materials. | Limited chemical resistance compared to PTFE and PFA. |
| Fluorinated Ethylene Propylene (FEP) | Excellent chemical resistance, smooth, low-friction surface. | Chemical processing, pharmaceutical industries, high-purity applications. | Excellent chemical resistance, low friction. | Moderate abrasion resistance. |
| Perfluoroalkoxy (PFA) | Superior chemical resistance, higher durability than PTFE, ideal for high-temperature and high-pressure environments. | Chemical industries, high-purity fluid applications. | Exceptional chemical resistance, high durability. | More expensive than other materials like PTFE. |
| Ceramic | Outstanding abrasion resistance, excellent chemical and temperature resistance. | Mining, ceramics, high-temperature chemical processing, industrial slurry treatment. | Extremely high abrasion resistance, chemical and temperature resistance. | Brittle, cracks under impact or thermal shock. |
Conclusion
The choice of lining material for an electromagnetic flow meter depends on several factors, including the chemical properties of the fluid, the temperature and pressure conditions, and the presence of solid particles or abrasive substances in the flow. Materials such as PTFE, Neoprene, and Polyurethane offer good resistance to chemicals and abrasion, while Ceramic and PFA provide superior durability and high-temperature resistance for more extreme applications.
By carefully selecting the appropriate lining material, industries can ensure accurate flow measurements, minimize maintenance costs, and prolong the life of their flow meters. Whether it's a chemical process, slurry handling, or high-temperature application, choosing the right lining material is essential for optimizing performance and ensuring reliability in demanding industrial environments.
