In industries where the measurement of water or wastewater flow in open channels is essential, Open Channel Flow Meters play a critical role. These advanced instruments are designed to provide accurate flow measurements in applications ranging from sewage systems to water treatment plants. The unique challenges posed by open channel flow require specialized technology, and Open Channel Flow Meters are designed to meet these demands. Let’s explore the key features, applications, and advantages of these flow meters.
1. What is an Open Channel Flow Meter?
An Open Channel Flow Meter is a device used to measure the flow of water or other liquids in open channels, such as rivers, streams, or ditches. Unlike traditional pipe flow meters, open channel flow meters are installed on the surface of the channel, often with no contact with the liquid, allowing them to measure the flow based on the level of the liquid and its velocity. These meters are essential for applications where liquid flow is not confined to pipes but instead follows an open path.
2. Ultrasonic Open Channel Flow Meters
One of the most effective technologies for open channel flow measurement is Ultrasonic Open Channel Flow Meter. These meters use ultrasonic sound waves to determine the velocity of the liquid, which is then used to calculate the flow rate. The non-invasive nature of ultrasonic technology ensures minimal impact on the flow while providing highly accurate data. This makes them ideal for use in environments where accurate, real-time flow measurements are required.
3. Water Flow Measurement for Open Channels
Whether it’s for water flow measurement for open channels in natural bodies like rivers or man-made systems such as irrigation channels, accurate flow monitoring is crucial for managing water resources. Open channel flow meters ensure the precise measurement of flow, helping to maintain system efficiency, prevent flooding, and monitor environmental conditions.
4. Non-contact Flow Measurement Technology
Non-contact flow meters offer a significant advantage in open channel flow measurement. Traditional methods may involve physical contact with the fluid, which can be intrusive and lead to wear and tear on sensors. Non-contact flow meters, on the other hand, use sensors mounted above the surface of the liquid, using technologies like ultrasonic or radar to measure flow without direct contact. This minimizes maintenance and avoids interference with the fluid flow.
5. Real-time Open Channel Flow Monitoring
Real-time open channel flow monitoring is critical for managing water flow efficiently. With real-time flow data, operators can detect anomalies such as sudden increases in flow rate, which could indicate a problem like a blockage or a system failure. This capability is essential for applications such as wastewater treatment, stormwater management, and flood monitoring. The ability to act quickly based on live data can prevent significant damage and optimize system performance.
6. Open Channel Flow Sensors
Open Channel Flow Sensors are integral components of flow meters, providing the measurements necessary for accurate flow calculation. These sensors typically measure parameters such as water level, velocity, or both, and transmit this data to the flow meter for analysis. Advances in sensor technology have made these sensors more accurate and reliable, even in harsh environmental conditions, improving the overall performance of flow measurement systems.
7. Digital Open Channel Flow Meters

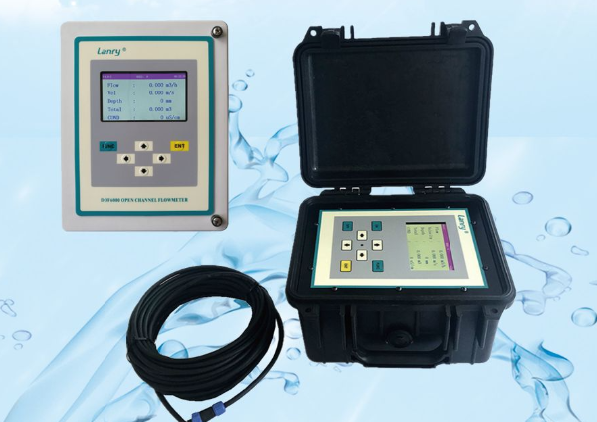

Digital Open Channel Flow Meters integrate modern digital technology to offer enhanced accuracy, easy calibration, and data logging. These meters often come with digital interfaces that allow users to view flow data on screens, making it easier to monitor and analyze measurements. Additionally, they may be equipped with remote monitoring capabilities, enabling users to track flow rates from a distance. This is especially useful for large-scale operations or remote locations.
8. Flow Measurement for Sewage Systems

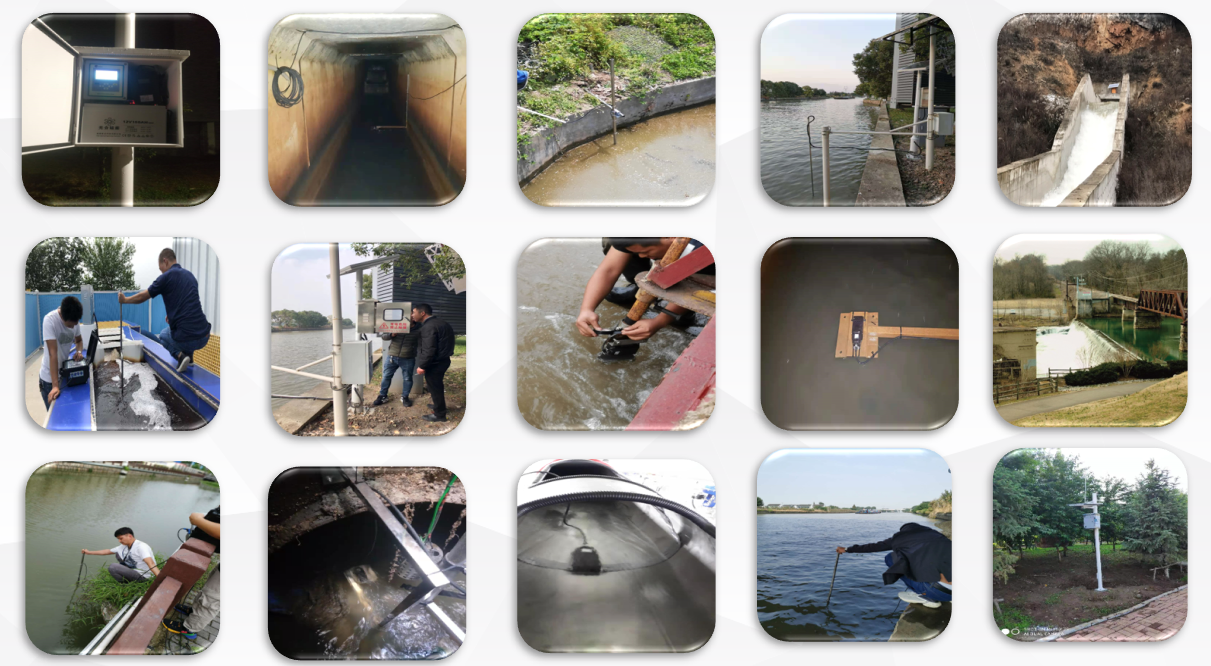

Accurate flow measurement in sewage systems is essential for maintaining efficiency and ensuring environmental compliance. Flow measurement for sewage systems can be challenging due to fluctuating flow rates, sediment, and other variables. Open Channel Flow Meters, particularly those equipped with ultrasonic technology, are ideal for measuring wastewater flow in open channels, helping utilities ensure proper treatment, monitor usage, and comply with regulatory requirements.
9. Water Discharge Flow Meters
Water discharge flow meters are used to measure the volume of water being discharged from a treatment plant, reservoir, or industrial system into the environment. Open channel flow meters provide an essential tool for monitoring these discharges, ensuring that they meet environmental standards and are appropriately managed. These meters are used extensively in the monitoring of runoff, flood control, and water conservation efforts.
10. The Future of Open Channel Flow Metering
As water management and environmental monitoring continue to grow in importance, the need for accurate and reliable open channel flow meters is more critical than ever. Advances in sensor technologies, such as ultrasonic sensors and digital interfaces, are driving the evolution of open channel flow metering. These improvements provide more accurate, real-time data that can be used for a wide range of applications, from managing natural water bodies to overseeing industrial and municipal water systems.
In conclusion,Open Channel Flow Meters are indispensable for accurately measuring the flow of liquids in open channels. Whether you’re monitoring water resources, managing sewage systems, or ensuring environmental compliance, these meters offer reliable, real-time data that supports efficient and sustainable operations. With advancements in non-contact flow measurement, ultrasonic technology, and digital interfaces, the future of open channel flow measurement is brighter than ever.By understanding the key features and applications of Open Channel Flow Meters, industries and municipalities can better manage water resources, improve system efficiency, and ensure regulatory compliance. Whether you’re dealing with natural waterways or urban sewage systems, investing in the right flow measurement technology is essential for success.
