A transit time type ultrasonic flow meter is a type of flow meter that uses the principle of measuring the time difference of ultrasonic sound waves to calculate the velocity of a fluid flowing through a pipe. This technology is widely used to measure the flow rate of liquids or gases, particularly in industries like water treatment, oil and gas, and chemical processing.
Working Principle:
Transit Time Measurement: The ultrasonic flow meter sends two pulses of sound waves in the direction of the flow (downstream) and against the direction of the flow (upstream). These pulses travel at different speeds due to the flow of the fluid.
Time Difference: The time it takes for the sound waves to travel downstream is shorter than the time it takes to travel upstream because the flow of the fluid aids the downstream pulse and slows down the upstream pulse. The difference in these travel times is directly proportional to the flow velocity of the fluid.
Flow Velocity Calculation: By knowing the geometry of the pipe and the time difference, the flow meter can calculate the average flow velocity of the fluid. This velocity is then used to determine the volumetric flow rate.
Types of Transit Time Ultrasonic Flow Meters
Inline (clamp-on or installed type): These meters are installed in the pipe, and the sensors are placed directly on the pipe walls to measure the time difference of ultrasonic signals.

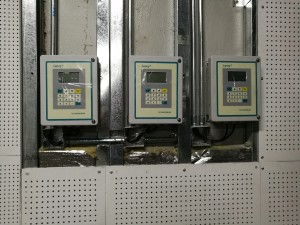

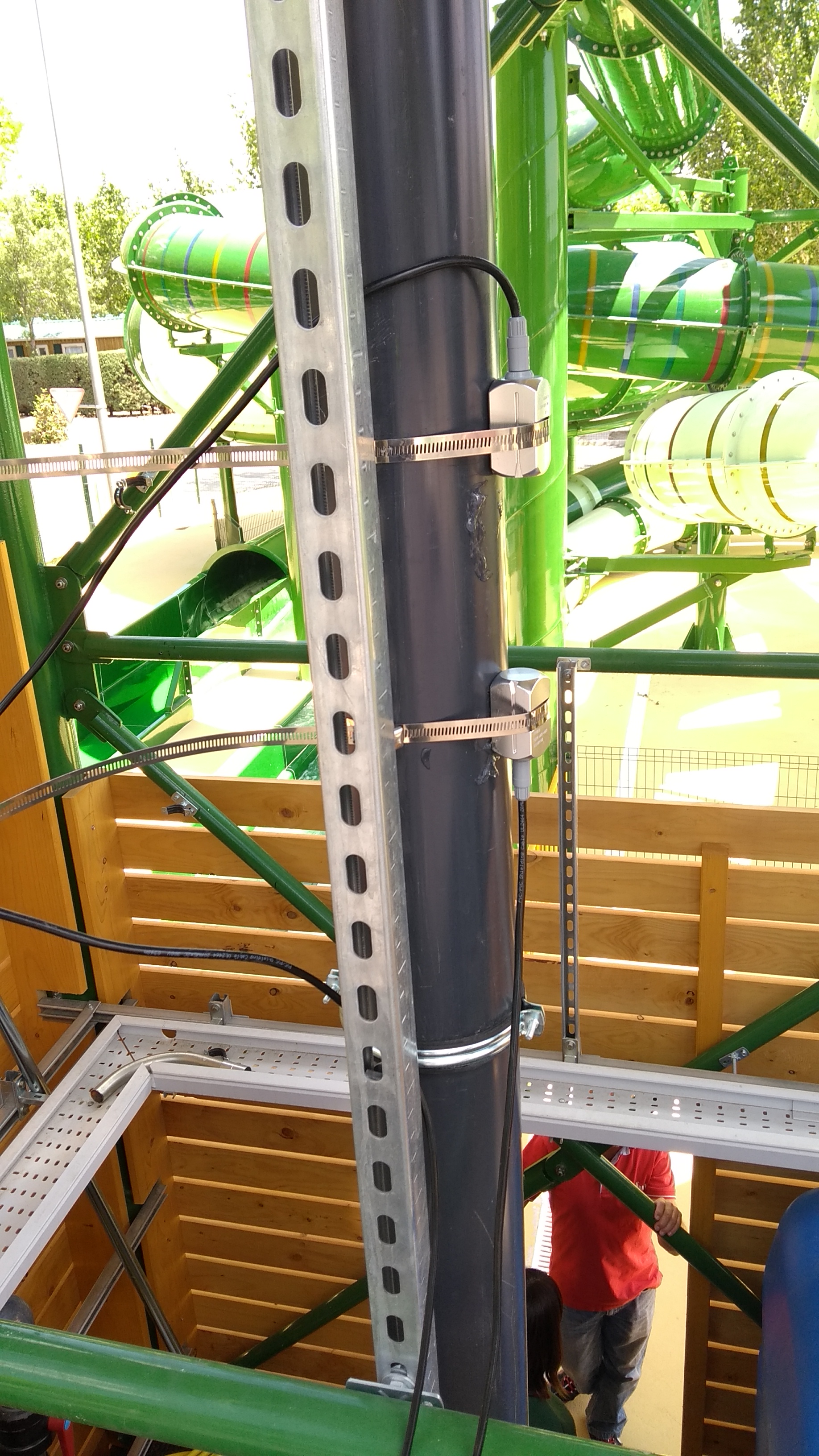

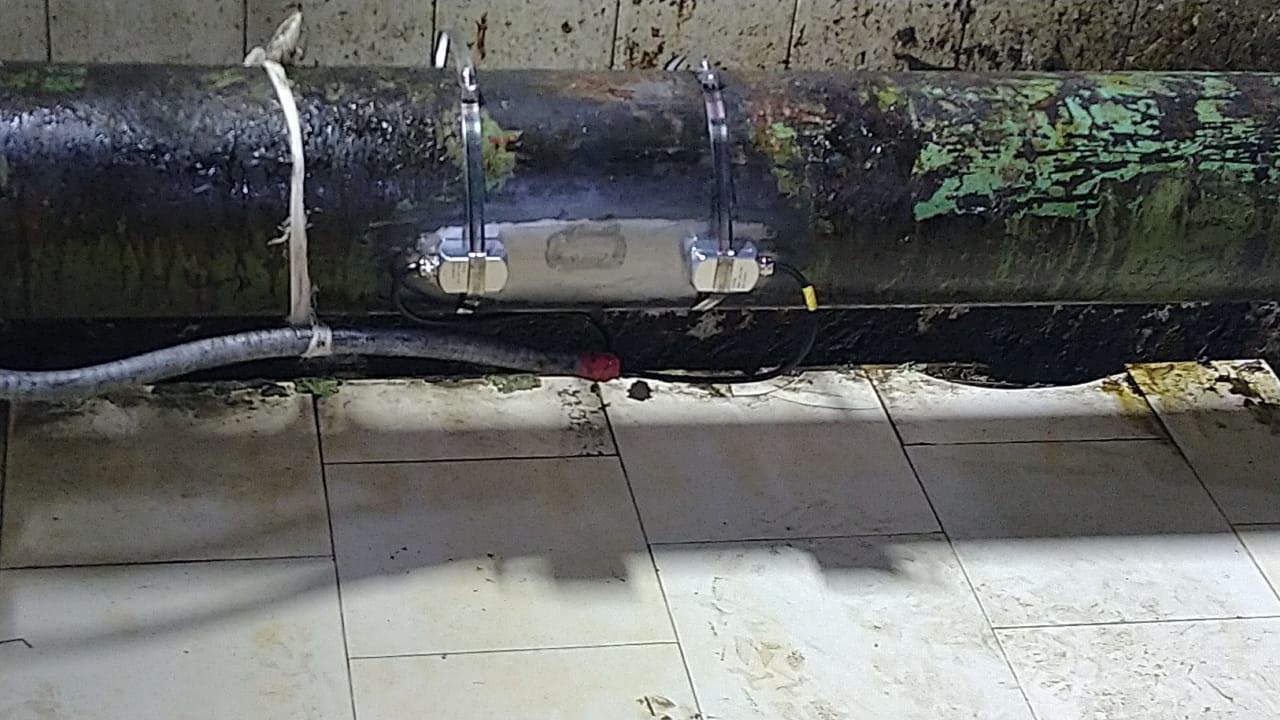

Clamp-On Type: This type doesn’t require any pipe modifications. Instead, ultrasonic transducers are clamped onto the outside of the pipe. The sound waves pass through the pipe wall and into the fluid.
Advantages
Non-intrusive (especially for clamp-on models): Since there’s no need to cut the pipe or interfere with the fluid flow, the installation is easy and does not disrupt the system.
Accuracy: Provides high accuracy for measuring flow rates.
Wide range of fluid types: Can measure flow in various types of fluids, including clean and dirty liquids, chemicals, and gases.
Maintenance-free: No moving parts, which reduces wear and tear and the need for maintenance.
Limitations
Pipe material and condition: The performance can be influenced by the pipe material, wall thickness, and surface roughness.
Fluid characteristics: It works best with clear liquids or gases. For fluids with high concentrations of particles or bubbles, the accuracy may decrease.
Transit time ultrasonic flow meters are especially advantageous for non-invasive flow measurements and offer flexibility across various applications.
