Traditional flow monitoring solutions for urban sewer networks, open channels, and partially filled pipelines suffer from prominent technical defects, including scattered data collection, cumbersome installation, high power consumption, and poor stability in turbid and sediment-laden water environments. The QSD 6537 integrated Doppler multi-parameter sensor is professionally developed for complex hydraulic monitoring scenarios. It integrates multiple measuring functions into a single compact unit, delivering high precision, ultra-low power consumption, strong environmental adaptability, and comprehensive telemetry compatibility. It has become a reliable core device for smart water network construction, urban sewage monitoring, agricultural irrigation management, and environmental hydrological detection.

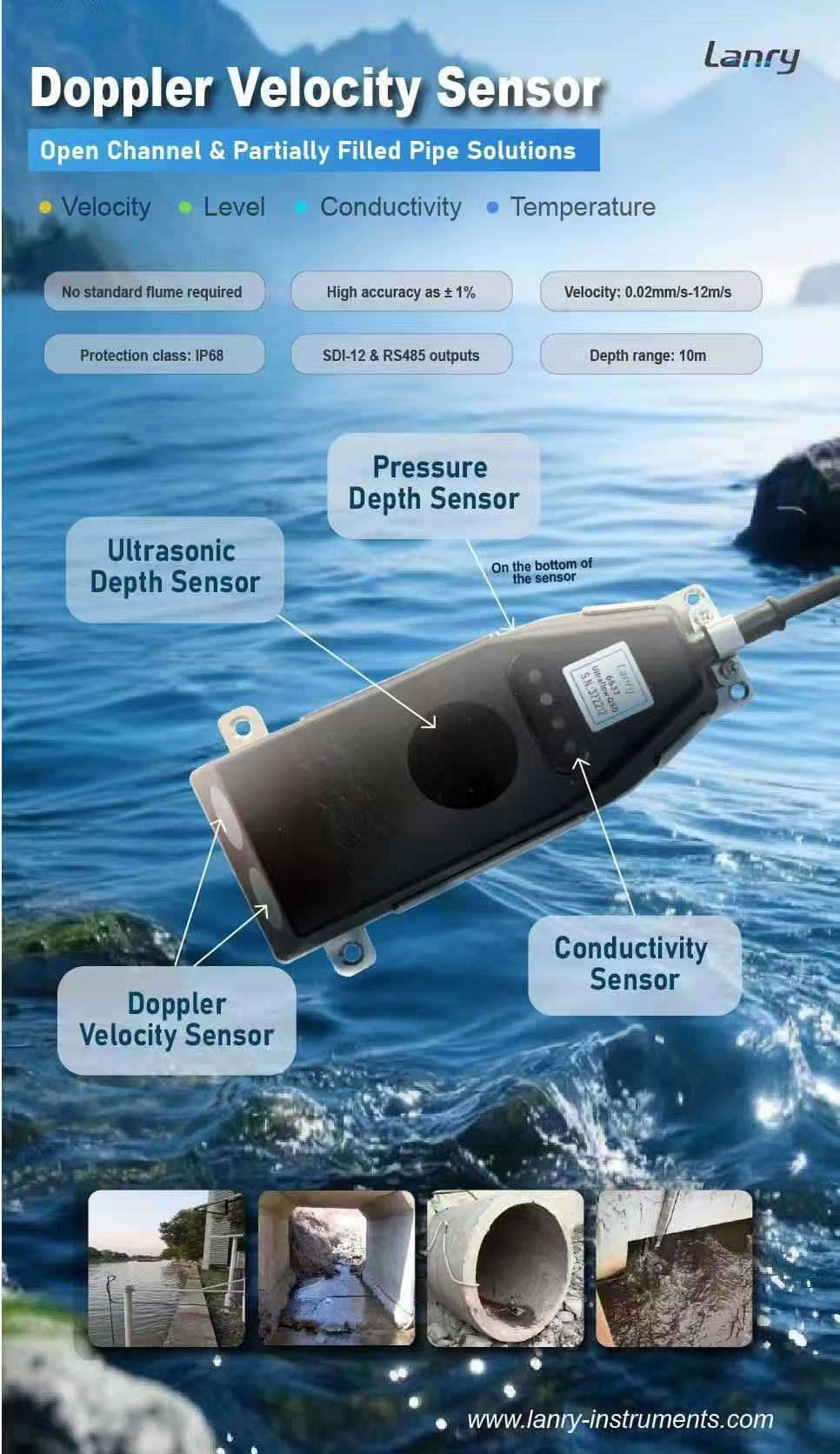

The most competitive feature of the QSD 6537 sensor is its all-in-one multi-parameter monitoring capability. It independently measures bidirectional flow velocity, water depth, water temperature, and water conductivity, realizing synchronous collection of hydraulic and water quality data without supporting auxiliary sensors. Adopting advanced quadrature sampling Doppler ultrasonic technology, the sensor calculates fluid velocity by capturing ultrasonic echo signals from suspended particles, sludge, and micro air bubbles in flowing water. It maintains stable and accurate measurement in various complex media, including domestic sewage, industrial wastewater, sediment-rich irrigation water, and brackish surface water. Its effective velocity range covers 0.02 m/s to 13.2 m/s with a measurement accuracy of ±1% of the reading, supporting forward and reverse flow monitoring to adapt to backflow sewer pipelines and tidal river channels.
To adapt to diverse working conditions, the QSD 6537 adopts a dual water depth measurement design, combining ultrasonic ranging and pressure sensing technologies. Users can switch measurement modes freely according to actual scenarios. The pressure depth mode is suitable for submerged installation in semi-filled pipelines and closed culverts, while the ultrasonic depth mode applies to open channels and natural rivers. With a maximum measurable water depth of 10 meters and built-in temperature and pressure automatic compensation algorithms, the sensor effectively eliminates data drift caused by environmental temperature changes and water pressure fluctuations, ensuring long-term stable and consistent measurement accuracy in all seasons.
Built with high-strength fully encapsulated epoxy resin, the QSD 6537 achieves IP68 full underwater protection, supporting long-term submerged operation without regular waterproof maintenance. Its streamlined low-resistance shell minimizes disturbance to the internal flow field, avoiding signal deviation caused by water flow turbulence and eddies. The sensor has no mechanical moving parts, completely eliminating common failures such as blockage, abrasion, and component aging that trouble traditional mechanical flow meters. This maintenance-free design greatly reduces on-site inspection and maintenance costs, making it highly suitable for unattended remote monitoring points. The extended matching cable allows flexible installation in deep buried pipelines, wide river channels, and hidden drainage structures.
Ultra-low power consumption is another critical advantage for outdoor unmanned monitoring scenarios. The QSD 6537 features ultra-low standby current and operating power, compatible with 3.6V lithium battery power supply. It can work continuously for 8 to 10 years without frequent battery replacement, and it also supports solar power supply for off-grid field sites. Equipped with standard SDI-12 and RS485 Modbus RTU communication protocols, the sensor can be seamlessly connected with flow integrators, data loggers, and various remote telemetry modules. It fully supports LoRaWAN, NB-IoT, and GPRS data transmission, realizing real-time cloud data upload, remote data viewing, and automatic data recording.
In terms of flow calculation, the supporting acquisition system adopts the mature velocity-area method and supports the input of multi-point cross-section coordinate data. It can accurately fit irregular channel and pipeline cross-sectional shapes, precisely calculating instantaneous flow and cumulative flow volume. This solves the technical difficulty of inaccurate flow measurement in non-standard open channels and variable-diameter semi-filled pipelines, filling the gap in high-precision monitoring for complex hydraulic scenarios.
Featuring simple installation and wide applicability, the sensor requires no pipeline cutting or system shutdown during deployment. It supports fixed long-term installation and temporary portable detection, meeting the demands of daily pipeline monitoring, regular pipeline inspection, and project acceptance detection. It is widely applicable in municipal sewer monitoring, sponge city rainwater detection, sewage plant outlet metering, farmland irrigation measurement, and ecological river water environment monitoring.
In conclusion, the QSD 6537 Doppler multi-parameter sensor integrates high precision, multi-function integration, durability, low power consumption, and intelligent remote transmission. It effectively simplifies monitoring systems, reduces overall project costs, and improves the intelligence level of water resource monitoring. With the continuous development of global smart water conservancy and digital urban water networks, the QSD 6537 will serve as an indispensable professional monitoring device for various hydraulic and environmental protection projects.
Key Technical Highlights Recap
- 5-in-1 measurement: velocity, dual-mode depth, temperature, conductivity
- Bi-directional wide velocity range: 0.02–13.2 m/s, ±1% high accuracy
- IP68 epoxy full sealing, no moving parts, low maintenance
- Micro standby power, lithium/solar power for remote sites
- Modbus/SDI-12 output, compatible with LoRaWAN/NB-IoT/GPRS telemetry
- Velocity-area algorithm supports irregular channel cross-section calculation
