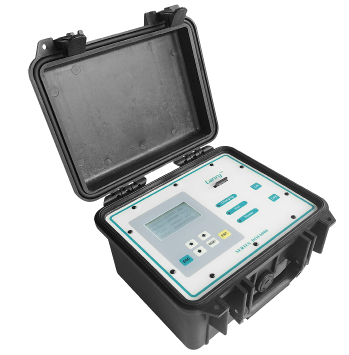

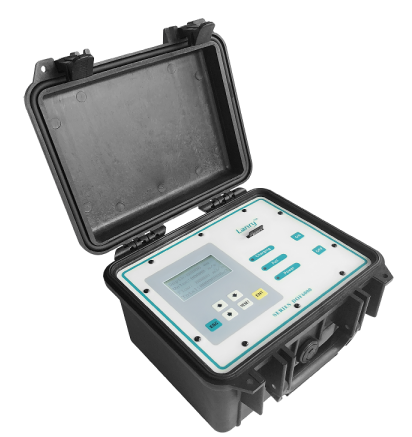

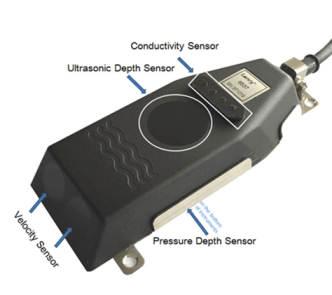

Open channel flowmeter consists of sensors and portable integrators designed for open channel and non-full pipe flow measurement. The open channel flowmeter adopts the principle of ultrasonic Doppler to measure the fluid velocity, and measures the water depth through the pressure sensor and ultrasonic sensor, so as to measure and monitor the flow. Due to its compact, robust and low-cost properties, in recent years, it has been used in the measurement of sewage and industrial wastewater, streams, drinking water and even seawater.
Features:
1. It can work for more than 50 hours under the condition of full charge.
2. Can simultaneously measure forward and reverse flow and velocity, temperature and liquid level.
3. Programmable calculation shape of open channel and non-full pipe.
4. 4 to 20mA, RS485/MODBUS interface output mode, GPRS optional.
5. SD card mass storage can be configured.
Applications:
Applied to sewers, stormwater, wastewater treatment plants, streams and rivers and urban drainage systems, irrigation water, industrial wastewater, water supply and drainage system flow measurement and monitoring, can also be applied to rivers and tide research and other fields.
