How Does the DOF6000 Open Channel Flow Meter Measure Flow in Partially Filled Pipes?
No flume to build. No pipe to cut. One submerged sensor at the flow itself.

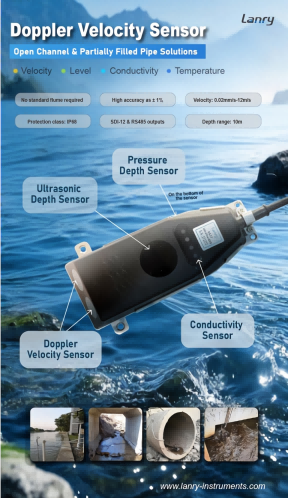

Measuring flow in partially filled pipes, sewers and open channels is challenging because the flow is never full and cross-sections vary. The DOF6000 non-full-pipe ultrasonic flow meter is designed for this task thanks to a single submerged sensor that measures velocity, depth and conductivity simultaneously — no flume to build, no pipe to cut. This guide covers its working principle, key features, measurement accuracy, installation requirements, communication options and FAQs.
1. What Is the DOF6000 Open Channel Flow Meter?
The Lanry DOF6000 open channel flow meter is an ultrasonic Doppler area velocity flow meter designed for open channel flow measurement, partially filled pipe flow measurement, and wastewater flow monitoring.
Portable Partially Filled & Open Channel Flowmeter

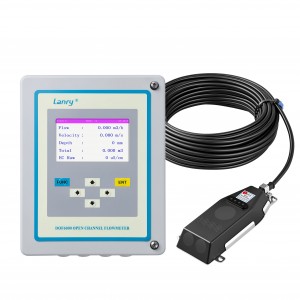

Wall-mounted Partially Filled & Open Channel Flowmeter
Unlike conventional full pipe flow meters, the DOF6000 can measure flow in partially filled sewer pipes, gravity pipelines, drainage channels, culverts, and open channels. It is suitable for applications such as municipal wastewater treatment, industrial wastewater discharge, stormwater monitoring, sewage flow measurement, irrigation systems, and environmental water monitoring.
For applications where a full-pipe flow meter is unsuitable, this non-full pipe flow meter provides a practical solution for measuring liquid velocity, water level, and flow rate.
2. How Does an Ultrasonic Doppler Flow Meter Work?
The DOF6000 uses the area velocity method to calculate flow rate:
Flow rate = Average flow velocity × Wetted cross-sectional area

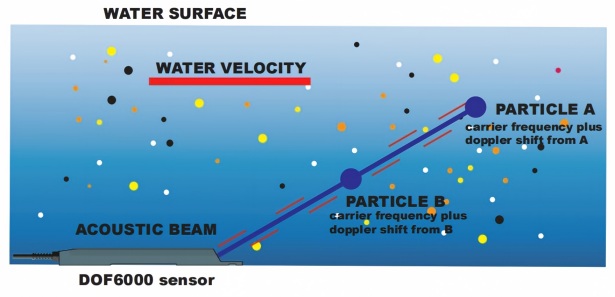

The ultrasonic Doppler flow sensor measures liquid velocity using signals reflected by suspended particles or air bubbles. The system measures water depth and calculates the wetted flow area according to the configured pipe diameter or channel dimensions.
This area velocity flow measurement principle makes the DOF6000 suitable for partially filled pipes, open channel discharge measurement, sewer flow monitoring, and wastewater flow measurement.
3. Can the DOF6000 Measure Sewage and Wastewater?
Yes. A Doppler ultrasonic flow meter is suitable for many wastewater applications because suspended solids and bubbles can provide the acoustic reflections required for velocity measurement.

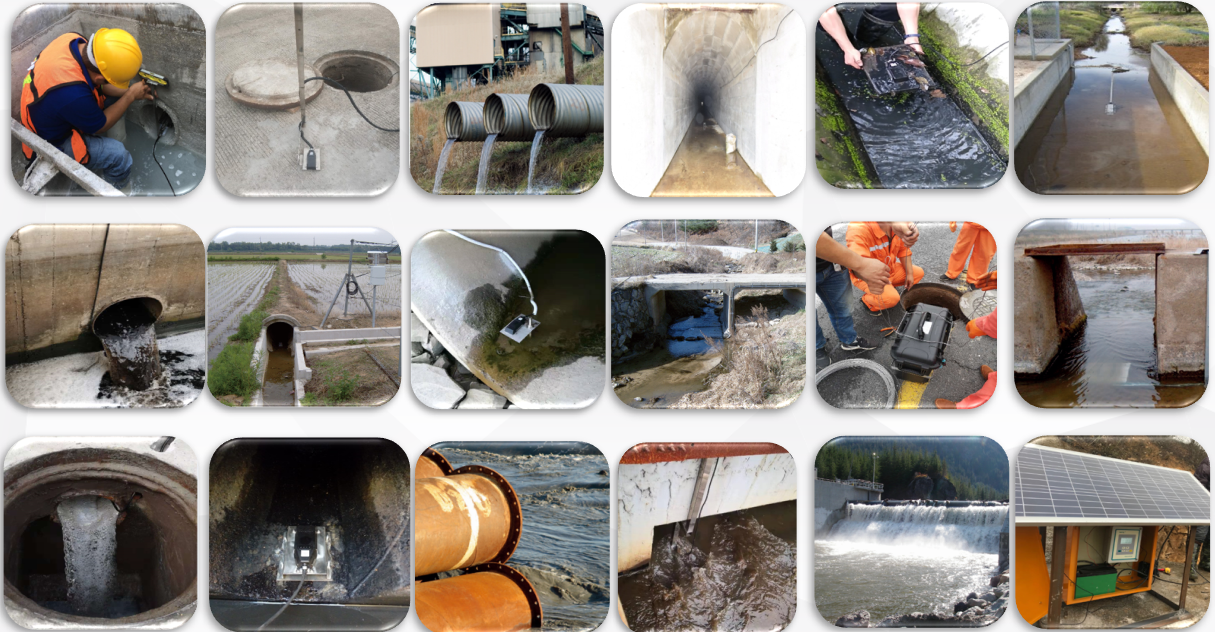

Typical applications include sewage flow measurement, industrial wastewater monitoring, stormwater drainage, effluent discharge monitoring, and wastewater treatment plant flow measurement.
However, very clean water with insufficient suspended particles may produce a weak Doppler signal. The suitability of the ultrasonic wastewater flow meter depends on liquid characteristics, flow velocity, sensor installation, and operating conditions.
4. What Affects Partially Filled Pipe Flow Measurement Accuracy?
The performance of a partially filled pipe flow meter depends on both velocity measurement and water level measurement. Common factors include:
For reliable open channel flow monitoring, confirm the pipe geometry, water level range, sensor position, and installation conditions.
5. How Should an Open Channel Flow Meter Be Installed?
Correct installation is essential for reliable ultrasonic flow measurement. Follow these three steps to set up your meter properly:
6. Why Is the Doppler Flow Meter Reading Unstable?
An unstable sewer flow meter reading may be caused by weak ultrasonic signals, insufficient suspended particles, changing water levels, flow turbulence, sediment buildup, or incorrect configuration.
• Insufficient suspended particles
• Changing water levels
• Flow turbulence
• Sediment buildup
• Incorrect configuration
3. Review the configuration — confirm the configured flow calculation parameters.
Correct installation and regular maintenance can help improve wastewater flow meter performance.
7. Can the DOF6000 Connect to a PLC or SCADA System?
Depending on the selected configuration, the DOF6000 may support 4–20 mA output, RS485 Modbus RTU, pulse output, data logging and remote monitoring options.
These functions support:
|
• PLC flow measurement
• SCADA flow monitoring
• Wastewater discharge monitoring
|
• Industrial process monitoring
• Remote flow data collection
|
Before ordering: confirm the required communication protocol, output signals and data logging functions with the Lanry team.
8. Select the Right Open Channel Flow Measurement Solution
The Lanry DOF6000 ultrasonic Doppler flow meter is designed for suitable wastewater flow measurement, partially filled sewer pipes, open channel discharge monitoring, stormwater flow measurement and industrial drainage applications.
When selecting a non-full pipe flow meter, consider the following factors:
|
• Liquid characteristics
• Flow velocity
• Water depth
|
• Pipe geometry
• Sediment conditions
• Communication requirements
|
9. Frequently Asked Questions About the DOF6000
Can an open channel flow meter measure flow in a partially filled pipe?
Yes. The DOF6000 is designed for suitable partially filled pipes, sewer pipelines, culverts and open channels.
Can a Doppler flow meter measure wastewater containing suspended solids?
Yes. Suspended particles can provide ultrasonic reflections for Doppler velocity measurement, making it suitable for many sewage and industrial wastewater applications.
Does sediment affect sewer flow measurement?
Yes. Sediment can obstruct the sensor and change the effective flow area, affecting the calculated discharge.
Can the DOF6000 measure flow in rectangular channels?
It can be configured for supported open channel geometries. Correct channel dimensions and sensor positioning are essential.
What information is required to select an open channel flow meter?
Provide the pipe diameter or channel dimensions, minimum and maximum water depth, liquid type, suspended solids conditions, expected flow range, installation location, and required output signals.
Tell us your pipe — we'll size the meter
Share your pipe material, diameter, flow range and measurement needs. The Lanry team will recommend the right portable configuration for your field testing.
