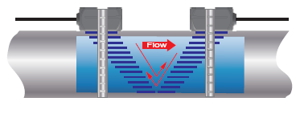

V Method
Z Method
Transit Time Ultrasonic Flow Meter is the core equipment for non-invasive flow measurement in global industrial and municipal fields, and clamp-on ultrasonic flow sensor is its key component with the advantages of no pipeline modification and easy deployment. Equipped with four professional installation methods including V, Z, W and N, the sensor takes V method flow sensor installation and Z method ultrasonic flow meter installation as the most widely used in practical applications. Scientifically selecting the matching installation method is the fundamental guarantee for stable ultrasonic signal reception, precise flow rate measurement and avoiding ultrasonic signal attenuation, which is critical for all scenarios of industrial flow meter installation and municipal pipeline flow monitoring.

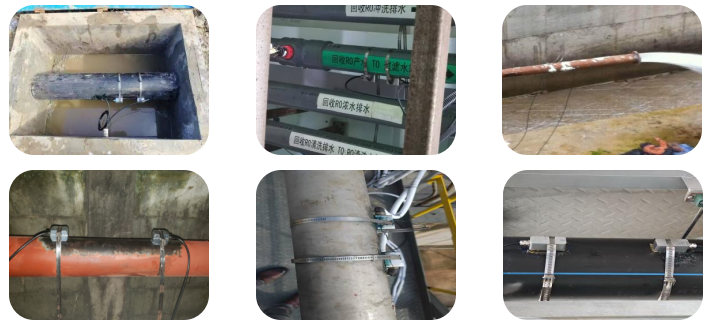

1. V Method – The Optimal Choice for Standard DN50-DN200 Flow Sensor Application
Suitable Working Conditions
V method flow sensor installation features simple operation and high-precision measurement, specially adapted for DN50-DN200 flow sensor application scenarios with uniform, dense media, and applicable for measuring most common industrial and civil liquids in standard pipelines. This installation method is also the first choice for partially or fully buried pipelines in municipal engineering. To ensure the best measurement effect of transit time ultrasonic flow meter, strict ultrasonic transducer mounting standards must be followed: the two clamp-on ultrasonic transducers must be horizontally aligned, with their center lines completely parallel to the pipeline axis, avoiding measurement errors caused by improper installation.
This method is widely used in mainstream non-invasive flow measurement scenarios requiring high accuracy and stability such as the water supply and drainage in municipal wastewater and domestic sewage systems; the industrial cooling system in manufacturing and processing plants; light petroleum products (diesel, kerosene) transportation pipelines in petrochemical industry and the chemical solvents (ethanol, acetone) transfer pipelines in fine chemical industry.

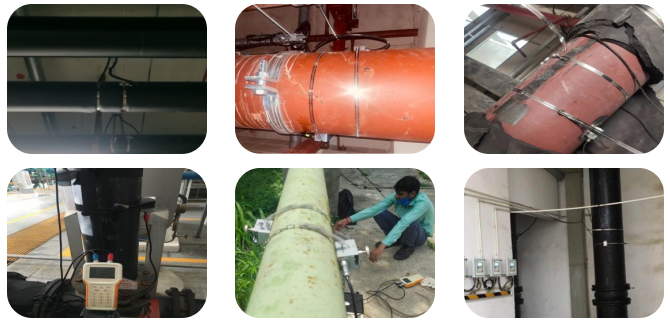

2. Z Method – The Professional Solution for Harsh Condition ultrasonic flow meter installation
Suitable Working Conditions
Z method ultrasonic flow meter installation is the optimal alternative when the V method cannot output stable signals, targeting complex on-site industrial flow meter installation scenarios such as non-standard diameter pipelines, measured media containing suspended solids, heavily fouled pipe inner walls and thick anti-corrosion pipe linings. Its core technical advantage is direct ultrasonic transmission through the medium without reflection, which maximizes the reduction of ultrasonic signal attenuation, ensures strong and stable signal reception even in harsh working conditions, and maintains the measurement accuracy of transit time ultrasonic flow meter.
This method is the professional choice for high-difficulty non-invasive flow measurement in various industries such as the large-diameter municipal water supply and drainage trunk pipelines in municipal engineering; slurry pipeline flow meter application in mining, metallurgy and building materials industries; heavy oil and crude oil long-distance transportation pipelines in petroleum industry; high suspended solids sewage systems and industrial wastewater pipelines containing solid particles; pipelines with severe inner wall scaling or thick anti-corrosion linings.
3. Conclusion
In the practical application of transit time ultrasonic flow meter, V method flow sensor installation is the preferred choice for standard DN50-DN200 flow sensor scenarios with clean, uniform and dense media, relying on easy ultrasonic transducer mounting and high measurement accuracy. Z method ultrasonic flow meter installation is engineered for complex, harsh working conditions, effectively solving the ultrasonic signal attenuation problem of the V method in non-standard pipelines and high-impurity media scenarios.
Both V and Z installation methods cover the vast majority of flow measurement for water pipelines, petroleum, chemical, slurry and sewage treatment scenarios in global industry and municipal engineering. By combining actual pipeline specifications, medium characteristics and on-site conditions to select the right installation method and standardize ultrasonic transducer mounting, the performance of clamp-on ultrasonic flow sensor can be maximized, realizing long-term stable and precise non-invasive flow measurement, and providing reliable data support for industrial process control and municipal pipeline operation management.
